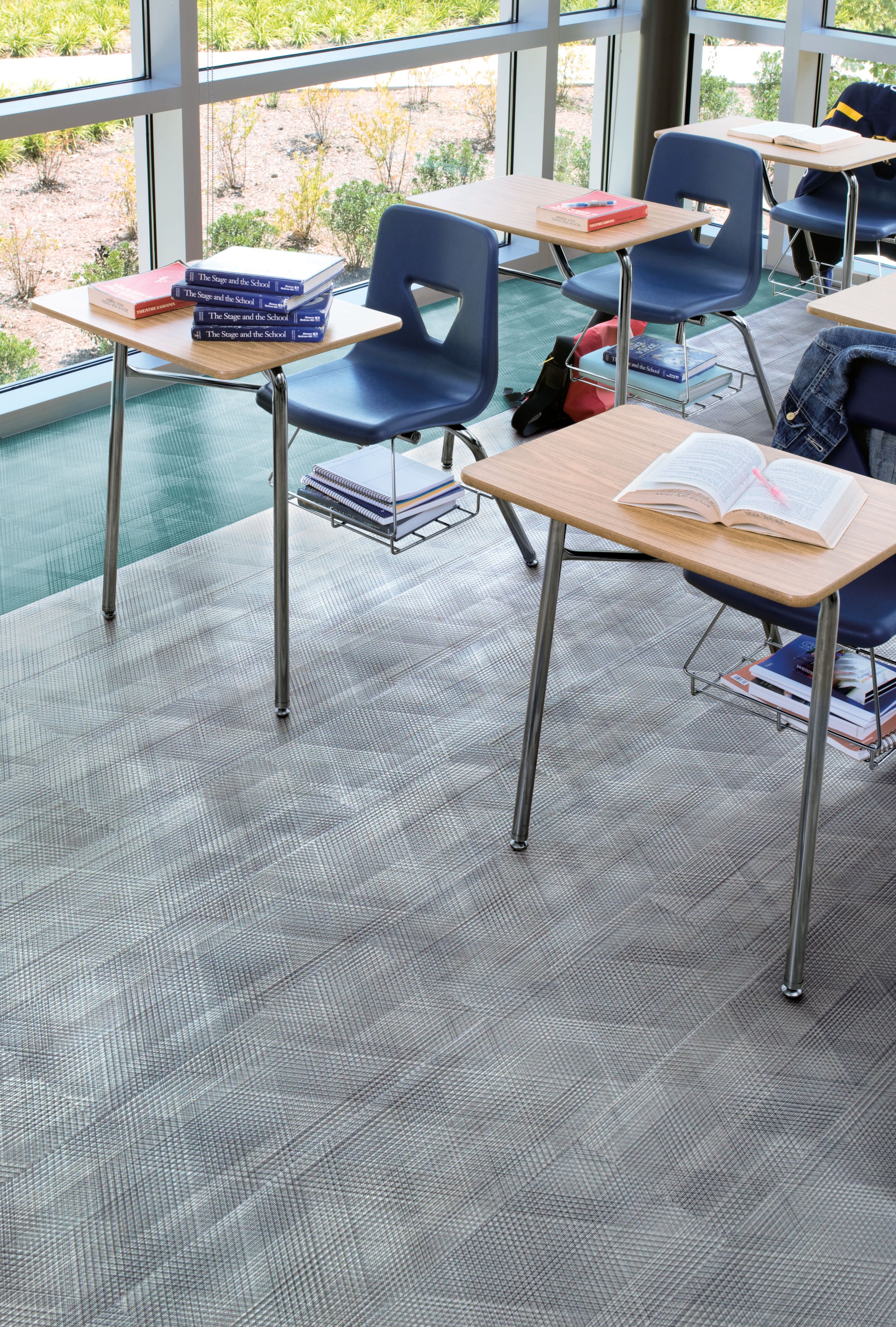

Interface Drawn Lines LVT in classroom with desks image number 2

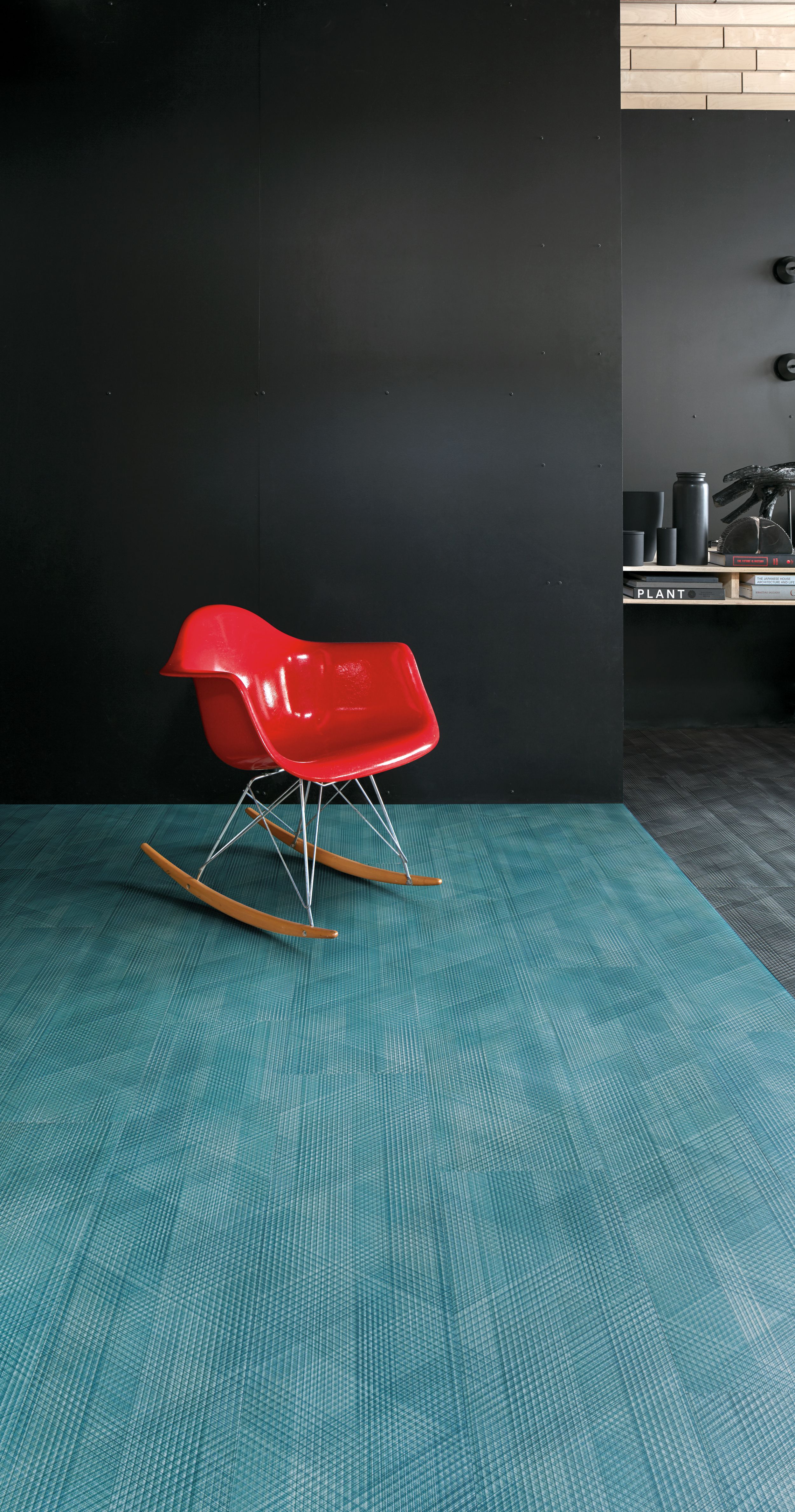

Interface Drawn Lines LVT in common area with red rocking chair image number 3
Interface Drawn Lines LVT in cafeteria setting with small tables and chairs image number 4
Interface Drawn Lines LVT and Stitch Count plank carpet tile in conference room image number 5
Drawn Lines LVT In Silver image number 6
scene7installationImage image number 7
scene7installationImage image number 8
scene7installationImage
Layout
Floor Design Tool
Brushed Lines and Drawn Lines

Drawn Lines 4.5 mm

$$$
Color:
Please select

Why we love this collection

Brushed Lines and Drawn Lines

Two LVT products inspired by natural linear patterns

Drawn Lines 4.5 mm

Fractals, nature’s favorite pattern-making method, are repeating patterns at different scales. Following this, Drawn Lines™ layers filament-fine marks in varying weights and rhythms, creating a prismatic geometry in an array of scales. Note the detail of the never-ending pattern, a finely linear matrix with softly pooling areas of light and dark and no visible repeats.

Product Number

A009

Product Construction

High Performance Luxury Vinyl Tile

Class / ASTM F1700

Class III Printed Vinyl Tile

Wear Layer Thickness

22 mil

Total Thickness

4.5 mm

Backing Class

Commercial Grade

Finish

Ceramor™

Nominal Dimensions

25 cm x 1 m (9.845 in x 39.38 in)

IIC Sound Rating

(ASTM E492-09) 64 IIC

Slip Resistance

(ASTM D2047) >0.55 wet/dry, ADA Compliant

Static Load Limit

(ASTM F970) 1500 psi

Flexibility

(ASTMF137) Passes

Resistance to Heat

(ASTM F1514) Passes

Resistance to Light

(ASTM F1515) Passes

Radiant Flux

(ASTM E648) Class I

Smoke Density

(ASTM E-662) ≤ 450

Size & Squareness

(ASTM F2055) Passes, +/- 0.016 in. per linear foot

Thickness

(ASTM F386) Passes

Dimensional Stability

(ASTM F2199) Passes

Residual Indentation

(ASTM F1914) Passes

Resistance to Chemicals

(ASTM F925) Passes

Embodied Carbon (Cradle to Gate)

9.2 Kg CO₂/M²

Total Recycled Content (Pre Consumer)

39%

Indoor Air Quality

GREENGUARD Gold

FloorScore® SCS-FS-04366

CDPH 01350 compliant

Material Composition

Free of Ortho Phthalates, Added Formaldehyde and Heavy Metal Stabilizers

Disclosure of Environmental Impacts

Environmental Product Declaration

Disclosure of Product Ingredients

Health Product Declaration

Environmental Certifications

NSF/ANSI 332, Meets Certification Guidelines

LEED v4

Contributes to IEQ: Low Emitting Materials; M&R: EPD and EPR

Quantity per Carton

26.91 ft² (2.5 m²)

Pieces per Carton

10

Weight Per Carton

40 lb (18 kg )

Cartons per Pallet

40

Pallets per Truckload

20

Installation

Interface LVT Installation Guidelines

Maintenance

Recommended Interface LVT Maintenance Guidelines

Reclamation

Recyclable through ReEntry® - Call 1.888.733.6873 (U.S.) / 1.866.398.3191 (Canada)

Warranty

15 Year Standard LVT Warranty

Installation Method

Ashlar

Herringbone

All product specifications reflect averages derived from product sample testing, are subject to normal manufacturing and testing tolerances and inherent pattern variances, and may be changed without notice. For more information about these and other important attributes of the product(s) described herein, including recycled content and product warranty information, please see www.interface.com/disclaimer.
